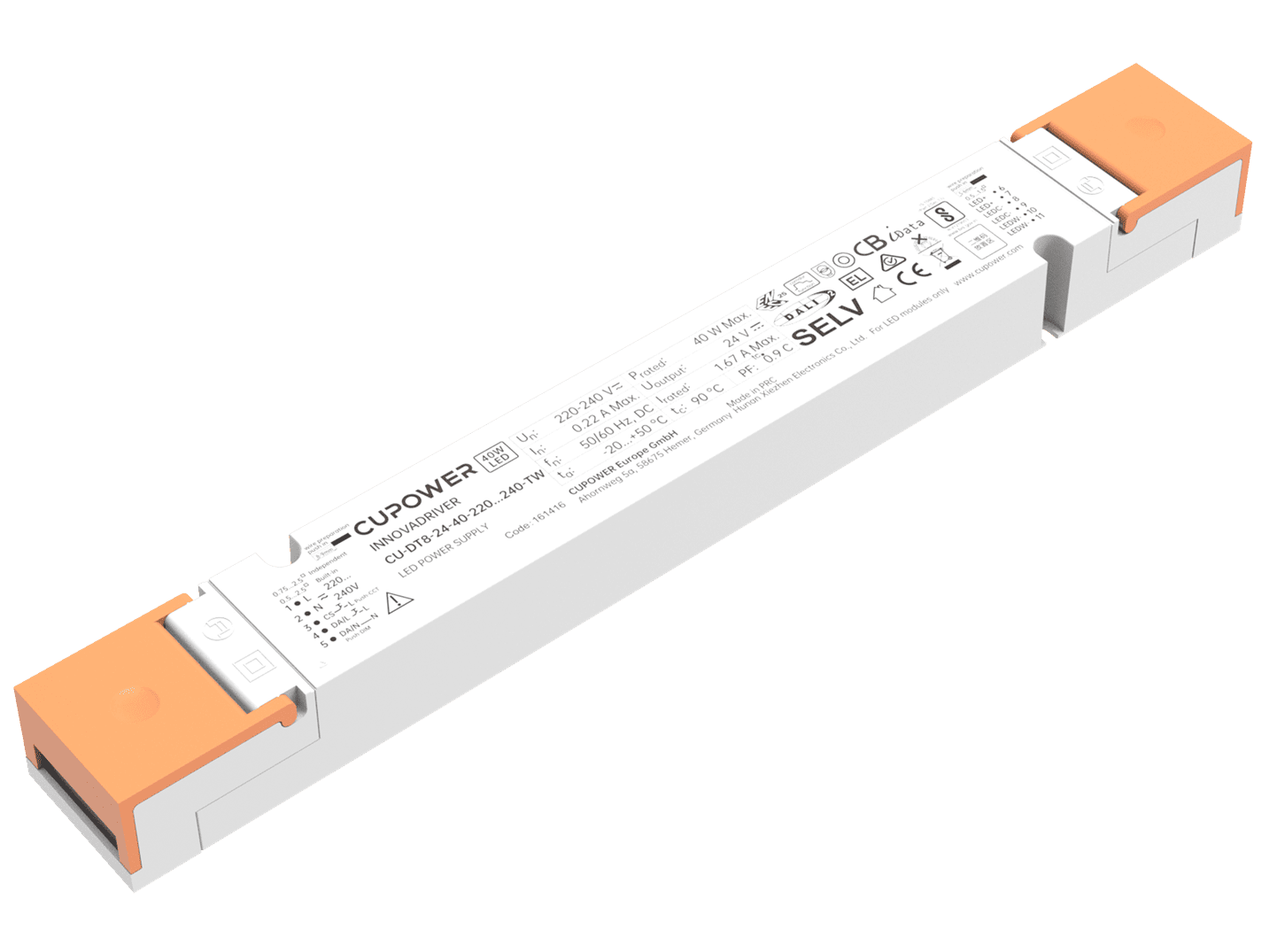

161416 CU-DT8-24-40-220...240-TW

< Back

L264 x W33 x H21 mm

WT: 0.18 kg

Questions Order a Sample
Product description
Constant voltage LED driver
Supports DALI-2, push DIM control, push CCT control
Supports i-Data function (DALI part 251, 252, 253)
DT8 (Tunable White) driver
Output current 0...1.67 A
Max. output power 40 W
DC emergency: current output default value 15%
For luminaires with IEC protection class l, ll
Removable strain reliefs included
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.22 A @ 230 Vac & 0.22 A @ 230 Vdc
THD:≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 21.8 A, Inrush current Twidth: 344 μs
MCB Quantity B10A:13
MCB Quantity C10A:22
MCB Quantity B16A:21
MCB Quantity C16A:36
Output current tolerance:N/A
Output voltage max:24 Vdc
Ripple:1%
Standby power consumption:≤ 0.30 W
Output PstLM:<1 at full load @ rated input voltage
Output SVM:<0.4 at full load @ rated input voltage
Dimming mode:DALI-2, push dimming
Dimming range:0.1％...100％
Adjustable output current:N/A
Withstand voltage:l/p-O/p: 3.75 kVac, < 5 mA 60 sec
Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
CU-DT8-24-40-220...240-TW1670 mA

220...240 Vac

24 V87.5%± 3%0.9


Operating temperature:-20…+50°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%...90%
Driver lifetime:at Tc < 90°C: 50,000 hrs; at Tc 80°C: 100,000 hrs @230 Vac
Maximum Tc temperature:90°C
Pcs./ carton:25 pcs
Carton size:310 x 175 x 140 mm
Gross weight:5.15 kg
  • Download
