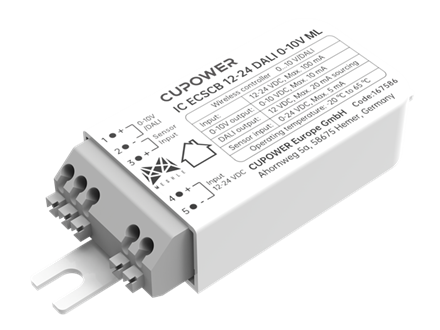

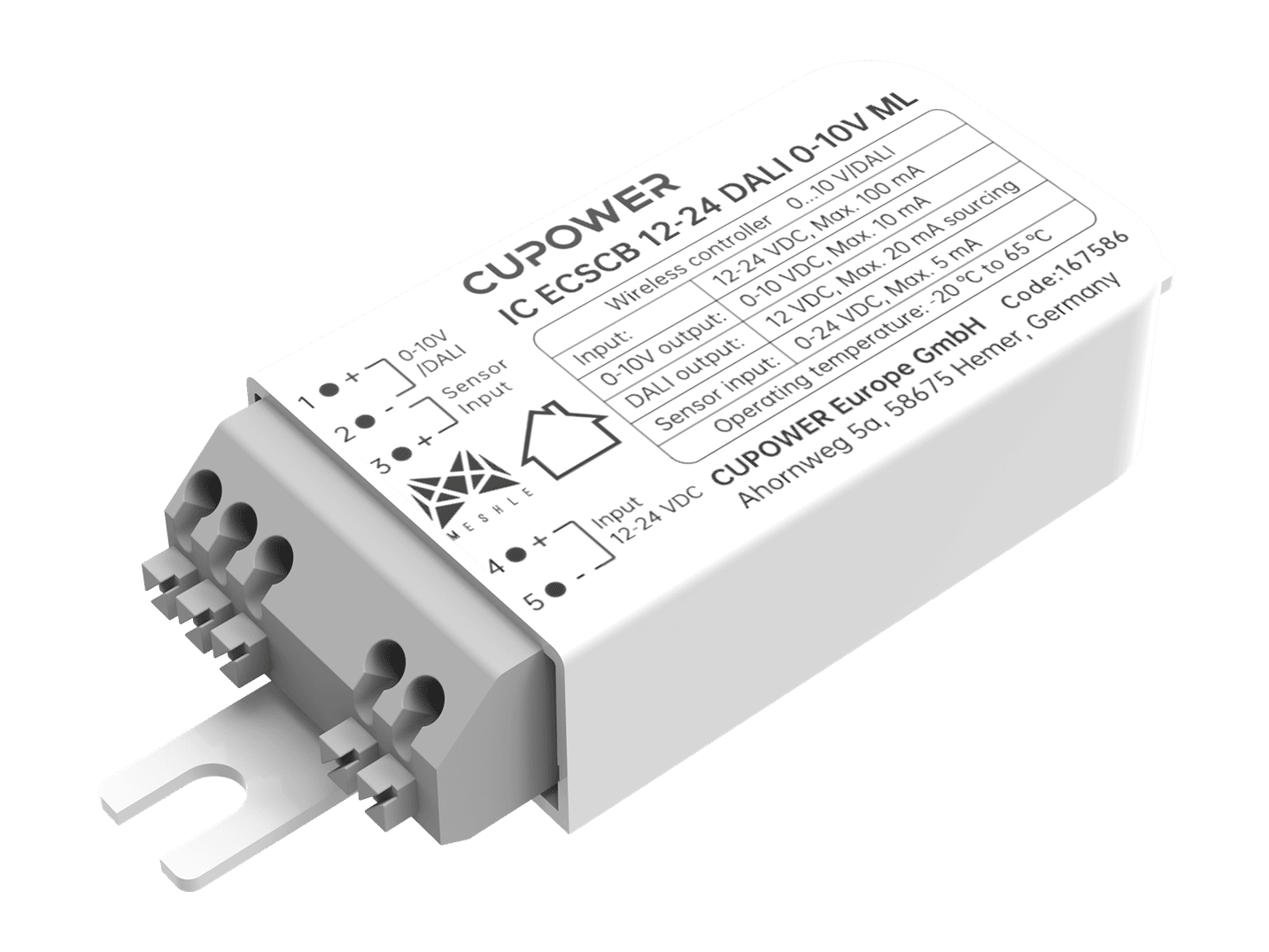

167586 IC ECSCB 12-24 DALI 0-10 V ML

< Back

L80.7 x W30 x H15 mm

WT: 0.03 kg

Questions Order a Sample
Product description
Supports single-channel 0-10V/DALI dimming control
Support for reading energy data via wireless network (luminaire data, energy consumption reports, diagnostics and maintenance)
Supports sensor input
ML = Meshle
Swipe for more
Rated input voltage range:12…24 Vdc
Max.input voltage range:0.1 A @ 12 Vdc
RF transmit power:+ 8 dBm
Wireless frequency:2.4 GHz
Wireless range (open air):50 m
Output voltage 0-10V:0-10 Vdc
Max 0-10V sinking current:10%
Output voltage DALI:12 Vdc
Output current DALI:20 mA
Sensor type:Motion (ON/OFF)
Input voltage:12-24 Vdc
Input current:2-5 mA


Product nameInput
               voltage		DALI0-10 V
IC ECSCB 12-24 DALI 0-10 V ML

12-24 Vdc

12V 20mA0-10 V 10mA


Operating temperature:-20…+65℃
Storage temperature:-40…+85℃
Working humidity:10%…90%
Store humidity:5%…95%
Driver lifetime:at Tc 70℃: 50,000 hrs @ 12 Vac
Maximum Tc temperature:85℃
Pcs./ carton:54 Pcs
Carton size:334 x 188 x 162 mm
Gross weight:2.0 kg
  • Download
