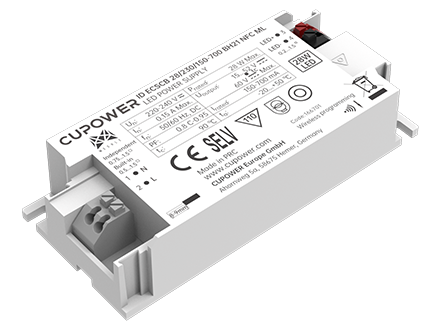

166701 ID ECSCB 28/230/150-700 BH21 NFC ML

< Back

L97 x W43 x H21.4 mm

WT: 0.093 kg

Product description

Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certification
Integrated wireless module for wireless ecosystem
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Support real-time data feedback
Smooth dimming with dimming range 1-100% (amplitude dimming)
Loop through connection comply with 2.5 mm² engineering cable entry specifications

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.16 A@ 230 Vac
THD:	≤ 10%
Inrush current [Aµs]:	12.9 A/236 us
MCB Quantity B10A:	21
MCB Quantity C10A:	35
MCB Quantity B16A:	33
MCB Quantity C16A:	56
Output current tolerance:	± 5%
Output voltage max.:	60 V
Ripple:	≤ 5%
Standby power consumption:	< 0.3 W@230 Vac
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	BLE mesh
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 28/230/150-700 BH21 NFC ML

150...700 mA

220...240 Vac

220...240 Vdc

15...52 V

90%

± 5%

> 0.9

Operating temperature:	-20...+50℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...90%
Driver lifetime:	50,000 hrs
Maximum Tc temperature:	90℃

Pcs./ carton:	24 Pcs
Carton size:	204 x 139 x 116 mm
Gross weight:	2.4 kg
