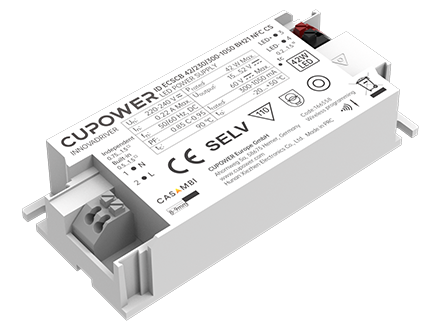

166558 ID ECSCB 42/230/300-1050 BH21 NFC CS

< Back

L97 x W43 x H21 mm

WT: 0.1 kg

Product description

Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certification
Integrated wireless module for wireless ecosystem
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Support real-time data feedback
Smooth dimming with dimming range 1-100% (amplitude dimming)
Loop through connection comply with 2.5 mm² engineering cable entry specifications

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.3 A @ 230 Vac
THD:	10%
Inrush current:	Inrush current lpeak: 5.24 A、Inrush current Twidth: 48 μs
MCB Quantity B10A:	38
MCB Quantity C10A:	36
MCB Quantity B16A:	61
MCB Quantity C16A:	61
Output current tolerance:	± 5%
Output voltage max:	59 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	BLE mesh
Dimming range:	1％...100％
Adjustable output current:	NFC
Withstand voltage:	I/P-O/P: 3.75KVac,＜5mA 60 sec
