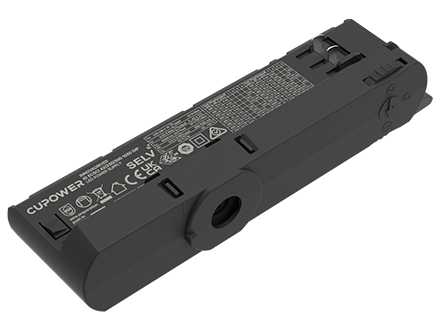

ON/OFF DIP > ID series

Product description

Multi-current dip is optional to reduce SKUs in stock
3 colours available: black, white, grey

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)
166237	ID ECSCI 42/230/300-1050 DIP W	42 W	220-240VAC 220-240VDC	9-42V	300-1050mA	88%	153 x 31 x 45 mm
167197	ID ECSCI 42/230/300-1050 DIP G	42 W	220-240VAC 220-240VDC	9-42V	300-1050mA	88%	153 x 31 x 45 mm
167180	ID ECSCI 42/230/300-1050 DIP B	42 W	220-240VAC 220-240VDC	9-42V	300-1050mA	88%	153 x 31 x 45 mm
167166	ID ECSCI 28/230/100-700 DIP B	28 W	220-240VAC 220-240VDC	9-42V	100-700mA	88%	153 x 31 x 45 mm
167173	ID ECSCI 28/230/100-700 DIP G	28 W	220-240VAC 220-240VDC	9-42V	100-700mA	88%	153 x 31 x 45 mm
166824	ID ECSCI 28/230/100-700 DIP W	28 W	220-240VAC 220-240VDC	9-42V	100-700mA	88%	153 x 31 x 45 mm

Specifications
Downloads
Technical features

Power range:	1-42W
Adjustable output current:	DIP switch
Dimming interface:	N/A
Dimming range:	N/A
Flicker-free:	PstLM≤1，SVM≤0.4
Input votage shock:	350 VAC, 2 h
Operating temperature range:	Ta -20…+35°C
Power factor:	＞ 0.9
Surge protection:	L-N: 1 kV
Start up time:	＜ 500 ms @ 230 V
Lifetime:	50,000 h
Type of Protection:	IP20
Warranty:	5 year

Data sheets
Approvals
3D Drawing
Declaration

166824_ID_ECSCI_28_230_100-700_DIP_W
167166_ID_ECSCI_28_230_100-700_DIP_B
167173_ID_ECSCI_28_230_100-700_DIP_G
Download all

CE-LVD_ON/OFF_DIP_ID_series
ENEC+EL_ON/OFF_DIP_ID_series
RCM_ON/OFF_DIP_ID_series
SAA_ON/OFF_DIP_ID_series
Download all

3D_ON/OFF_DIP_ID_series_28W_42W
Download all

CE_Declaration_of_Conformity_ON/OFF_DIP_ID_series
Download all
