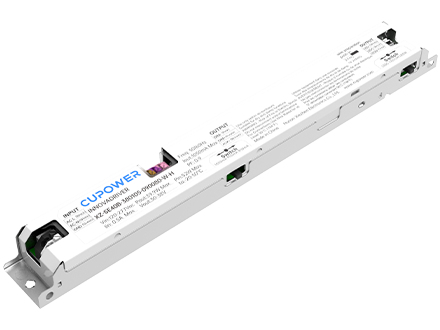

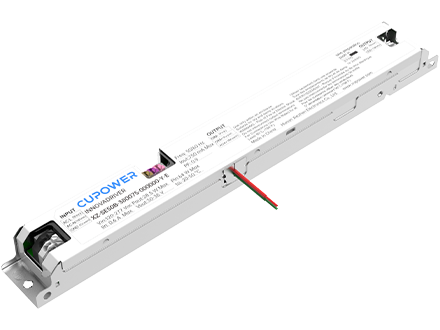

SELV DIP > SE/SH/SC/SG/SL/SY series

Product description

Input voltage coverage of 120-277 V/120-347 V
SELV 0/1-10 V dimming solution
12 V auxiliary power supply, expandable for various sensors and controllers
Power and color temperature, low flicker, flicker-free, multiple combinations available

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)
162345	XZ-SG60B-450XXX-VVVWWWZZZ-T	60.7 W	120-347VAC	36-45V	500-1300mA	88%	267 x 27 x 20 mm
162338	XZ-SG60B-380XXX-VVVWWWZZZ-T	57 W	120-347VAC	30-38V	600-1500mA	88%	267 x 27 x 20 mm
162321	XZ-SG50B-450XXX-VVVWWWZZZ-T	49.5 W	120-347VAC	36-45V	650-1050mA	87%	230 x 27 x 20 mm
162314	XZ-SG50B-380XXX-VVVWWWZZZ-T	47.5 W	120-347VAC	30-38V	700-1250mA	87%	230 x 27 x 20 mm
162307	XZ-SG40B-450XXX-VVVWWWZZZ-T	38.25 W	120-347VAC	36-45V	450-850mA	86%	257 x 30 x 21 mm
162291	XZ-SG40B-380XXX-VVVWWWZZZ-T	39.9 W	120-347VAC	36-45V	600-1050mA	87%	230 x 27 x 20 mm
162284	XZ-SC60B-450XXX-VVVWWWZZZ-T	60.7 W	120-277VAC	36-45V	500-1300mA	88%	267 x 27 x 20 mm
162277	XZ-SC60B-380XXX-VVVWWWZZZ-T	57 W	120-277VAC	30-38V	600-1500mA	88%	267 x 27 x 20 mm
162260	XZ-SC50B-450XXX-VVVWWWZZZ-T	49.5 W	120-277VAC	36-45V	650-1050mA	87%	230 x 27 x 20 mm
162253	XZ-SC50B-380XXX-VVVWWWZZZ-T	47.5 W	120-277VAC	30-38V	700-1250mA	87%	230 x 27 x 20 mm
162239	XZ-SC40B-380XXX-VVVWWWZZZ-T	39.9 W	120-277VAC	30-38V	600-1050mA	86%	230 x 27 x 20 mm
162246	XZ-SC40B-450XXX-VVVWWWZZZ-T	38.2 W	120-277VAC	36-45V	450-850mA	86%	230 x 27 x 20 mm
162222	XZ-SC30B-450XXX-VVVWWWZZZ-T	29.2 W	120-277VAC	36-45V	350-650mA	85%	230 x 27 x 20 mm
164165	XZ-SC30B-380XXX-VVVWWWZZZ-T	28.5 W	120-277VAC	30-38V	450-750mA	85%	257 x 30 x 21 mm
162208	XZ-SH60B-450XXX-VVVWWW-T	60.7 W	120-347VAC	36-45V	500-1300mA	88%	267 x 27 x 20 mm
162192	XZ-SH60B-380XXX-VVVWWW-T	57 W	120-347VAC	30-38V	600-1500mA	88%	267 x 27 x 20 mm
162185	XZ-SH50B-450XXX-VVVWWW-I-T	49.5 W	120-347VAC	36-45V	650-1250mA	87%	230 x 27 x 20 mm
162178	XZ-SH50B-380XXX-VVVWWW-I-T	47.5 W	120-347VAC	30-38V	700-1250mA	87%	230 x 27 x 20 mm
162161	XZ-SH40B-450XXX-VVVWWW-I-T	38.2 W	120-347VAC	36-45V	450-850mA	87%	230 x 27 x 20 mm
162147	XZ-SE60B-450XXX-VVVWWW-T	60.7 W	120-277VAC	36-45V	600-1300mA	87%	267 x 27 x 20 mm
162130	XZ-SE60B-380XXX-VVVWWW-T	57 W	120-277VAC	30-38V	600-1500mA	88%	267 x 27 x 20 mm
162123	XZ-SE50B-450XXX-VVVWWW-I-T	49.5 W	120-277VAC	36-45V	650-1050mA	87%	230 x 27 x 20 mm
162116	XZ-SE50B-380XXX-VVVWWW-I-T	47.5 W	120-277VAC	30-38V	700-1250mA	87%	230 x 27 x 20 mm
162109	XZ-SE40B-450XXX-VVVWWW-I-T	38.2 W	120-277VAC	36-45V	450-850mA	86%	230 x 27 x 20 mm
162093	XZ-SE40B-380XXX-VVVWWW-I-T	39.9 W	120-277VAC	30-38V	600-1050mA	86%	230 x 27 x 20 mm
162086	XZ-SE30B-450XXX-VVVWWW-I-T	29.2 W	120-277VAC	36-45V	350-650mA	85%	230 x 27 x 20 mm
162079	XZ-SE30B-380XXX-VVVWWW-I-T	28.5 W	120-277VAC	30-38V	400-750mA	85%	230 x 27 x 20 mm
162178	XZ-SH40B-380XXX-VVVWWW-I-T	39.9 W	120-347VAC	30-38 V	600-1050 mA	87%	230 x 27 x 20 mm

Specifications
Downloads
Technical features

Power range:	12-60 W
Adjustable output current:	DIP switch
Dimming interface:	0/1-10 V
Dimming range:	7...100%
Flicker-free:	≤ 5%
Flicker-freeInput votage shock:	320 V AC, 1 h
Operating temperature range:	Ta -20...+50 ℃
Power factor:	＞ 0.9
Surge protection:	L-N: 1 kV, L/N-GND: 2 kV
Start up time:	＜ 750 ms @ 120 V，＜ 500 ms @ 277 V
Lifetime:	50,000 h
Type of Protection:
Warranty:	5 year

Data sheets
Approvals
3D Drawing
Declaration
