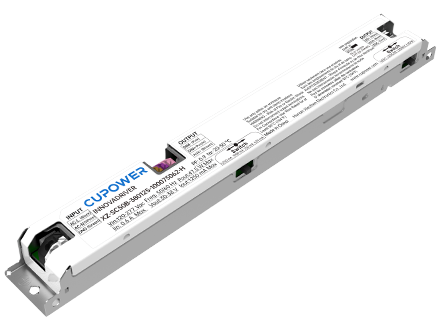

162284 XZ-SC60B-450XXX-VVVWWWZZZ-T

< Back

L267 x W27 x H20 mm

WT: N/A

Questions Order a Sample

Product description

Input voltage coverage of 120-277 V/120-347 V
SELV 0/1-10 V dimming solution
12 V auxiliary power supply, expandable for various sensors and controllers
Power and color temperature, low flicker, flicker-free, multiple combinations available

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	120...277 Vac
Max.input voltage range:	108...305 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.7 A @ 230 Vac
THD:	≤ 20%
Inrush current [Aµs]:	N/A
MCB Quantity B10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity B16A:	N/A
Output current tolerance:	± 5%
Output voltage max.:	55/60 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.5 W @ 120 Vac
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	0-10 V
Dimming range:	5%...100%
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P:1.8KVac,<5mA 60 sec;I/P-FG:1.8KVac,<5mA 60 sec;I/P-DIM:1.8KVac,<5mA 60sec;O/P-FG:0.6KVac,<5mA 60sec;DIM-FG:0.6KVac,<5mA 60sec

Operating temperature:	-20...+62℃
Storage temperature:	-40...+85℃
Working humidity:	10%...90%
Store humidity:	5%...90%
Driver lifetime:	at tc<70℃: 50,000 hrs; at tc＜60℃: 100,000 hrs @ 120 Vac
Maximum Tc temperature:	70℃

Pcs./ carton	60 pcs
Carton size	332 x 297 x 186 mm
Gross weight	N/A

Data sheets
Approvals
3D Drawing
Declaration

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all
