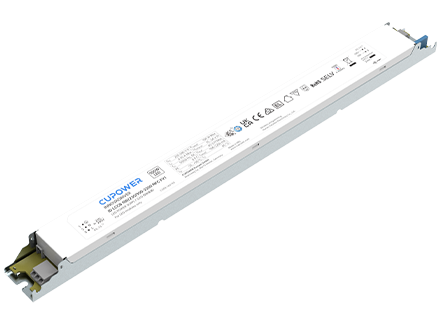

SELV NFC > ID series

  • 新100
Product description
Constant current driver with wide operating windows
High power factor
Flicker-free
Supports NFC readers for precise control of multiple functions
Suitable for Class I luminaires
Product family
Article No. Description Power Input
voltage
Output
voltage
Output
current
Efficiency
@full load
Dimensions
(mm)
Data sheet
(download)
160785 ID LCCB 100/230/900-2200 NFC FV1 100W 220-240VAC
220-240VDC
15-54 V
900-2200 mA
89% 358 x 30 x 21 mm
160815 ID LCCB 75/230/700-2000 NFC FV1 75W 220-240VAC
220-240VDC
15-54 V
700-2000 mA
88% 302 x 30 x 21 mm
160778 ID LCCB 50/230/350-1400 NFC FV1 50W 220-240VAC
220-240VDC
15-54 V
350-1400 mA
88% 278 x 30 x 21 mm
161577 ID LCCB 35/230/100-850 NFC FV1 35W 220-240VAC
220-240VDC
15-54 V
100-850 mA
87% 278 x 30 x 21 mm
Power range2-100 W
Adjustable output currentNFC
Dimming interface/
Dimming range/
Flicker-freePstLM < 1, SVM < 0.4
Flicker-freeInput votage shock320 V AC, 1 h
Operating temperature rangeTa -20...+50°C
Power factor> 0.9
Surge protectionL-N: 1 kV, L/N-GND: 2 kV
Start up time< 500 ms @ 230 V
Lifetimeat Tc ≤ 85℃: 50,000 hrs; at Tc ≤ 75℃: 100,000 hrs; @230Vac
Type of ProtectionI
Warranty5 year
  • Download all
  • Download all
  • Download all
  • Download all
Supports multiple protocols and is compatible with multiple lighting fixtures
DALI-2
The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.
NFC
NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.
idata
Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).
Bluetooth
Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.
WIFI
Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.
D4i
D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
