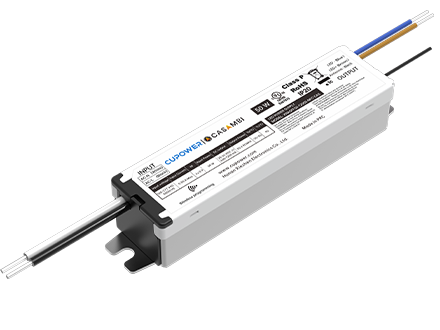

165803 XNASFF50-1200S-NFC-CAS

< Back

L4.72 x W1.08 x H0.89 in

WT: 0.135 kg

Questions Order a Sample

Product description

UL Class P rating lets you easily transit to this driver
Compact form factor for versatile installation options
Complies with DLC and Title 24 requirements for energy efficiency
Dimming range of 1-100% (amplitude dimming) for flicker-free operation
Casambi Ready for seamless integration into smart lighting networks
Supports NFC programming for easy configuration and customization

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltage range:	120…277 Vac; performance range
Max.input voltage range:	108...305 Vac; operational safety range
Rated frequency range:	50/60 Hz
Performance / Operational safety:	47...63 Hz
Max. input current:	0.5 A @ 120 Vac
THD:	≤ 20%
Inrush current [Aµs]:	17.8 A / 128 μs
MCB Quantity B10A:	16
MCB Quantity C10A:	16
MCB Quantity B16A:	27
MCB Quantity C16A:	27
Output current range:	NFC control adjusts the current: 600…1200 mA
Default output current.:	600 mA
Output voltage range:	28…52 Vdc
Noise leve:	< 20 dB, at full load @ 100 cm distance

Operating temperature:	-20… +50℃
Storage temperature:	-25… +85℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 75℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	90℃

Pcs./ carton:	64 Pcs
Carton size:	11.73 x 10.79 x 6.06 in
Gross weight:	9.6 kg

Data sheets
Approvals
3D Drawing
Declaration

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

NAPPK PWM5CH-CAS

NALNR54-1400D-NFC-CAS

NALNR54-1400D-010V-NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XNASFF50-1200S-NFC-CAS	600…1200 mA	120...277 Vac	28...52 V	90% (typical)	± 5%	0.9
