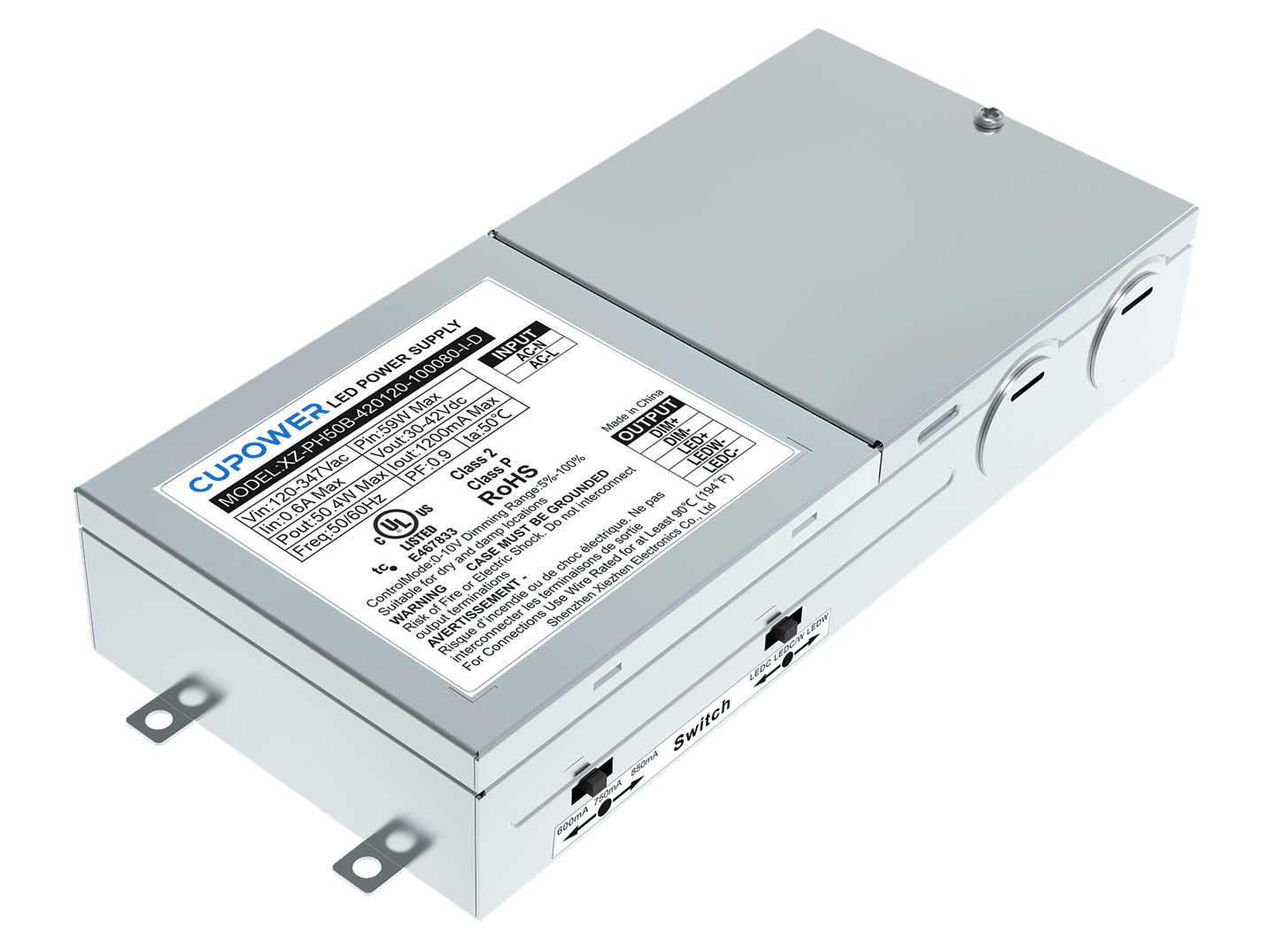

162802 XZ-PH50B-420XXX-VVVWWW-T

< Back

L188 x W84 x H34.5 mm

WT: N/A

Product description

• Input voltage coverage of 120-277 Vac/120-347 Vac
• Power and color temperature, low flicker, Flicker-free, multiple combinations available
• Various housing combinations: standard, large wiring space, ultra-large wiring space optional
• Input interface: wire, terminal optional

Rated input voltage range:	120...347 Vac
Max.input voltage range:	108...380 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.6 A@ 120 Vac
THD:	≤ 20%
Inrush current [Aµs]:	N/A
MCB Quantity B10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity B16A:	N/A
MCB Quantity C16A:	N/A
Output current tolerance:	± 5%
Output voltage max.:	55 V
Ripple:	≤ 30%
Standby power consumption:	< 0.5 W@120 Vac
Output PstLM:	N/A
Output SVM:	N/A
Dimming mode:	0-10 V
Dimming range:	7%...100%
Adjustable output current:	FIXED
Withstand voltage:	I/P-O/P: 1.8 kVac, < 5 mA 60 sec; I/P-FG: 1.8 kVac,< 5 mA 60 sec; I/P-DIM: 1.8 kVac, < 5 mA 60 sec; O/P-FG: 0.6 kVac, < 5 mA 60 sec; DIM-FG: 0.6 kVac, < 5mA 60 sec

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-PH50B-420XXX-VVVWWW-T	550...1150 mA	120...347 Vac	30...42 V	87%	± 5%	> 0.9
