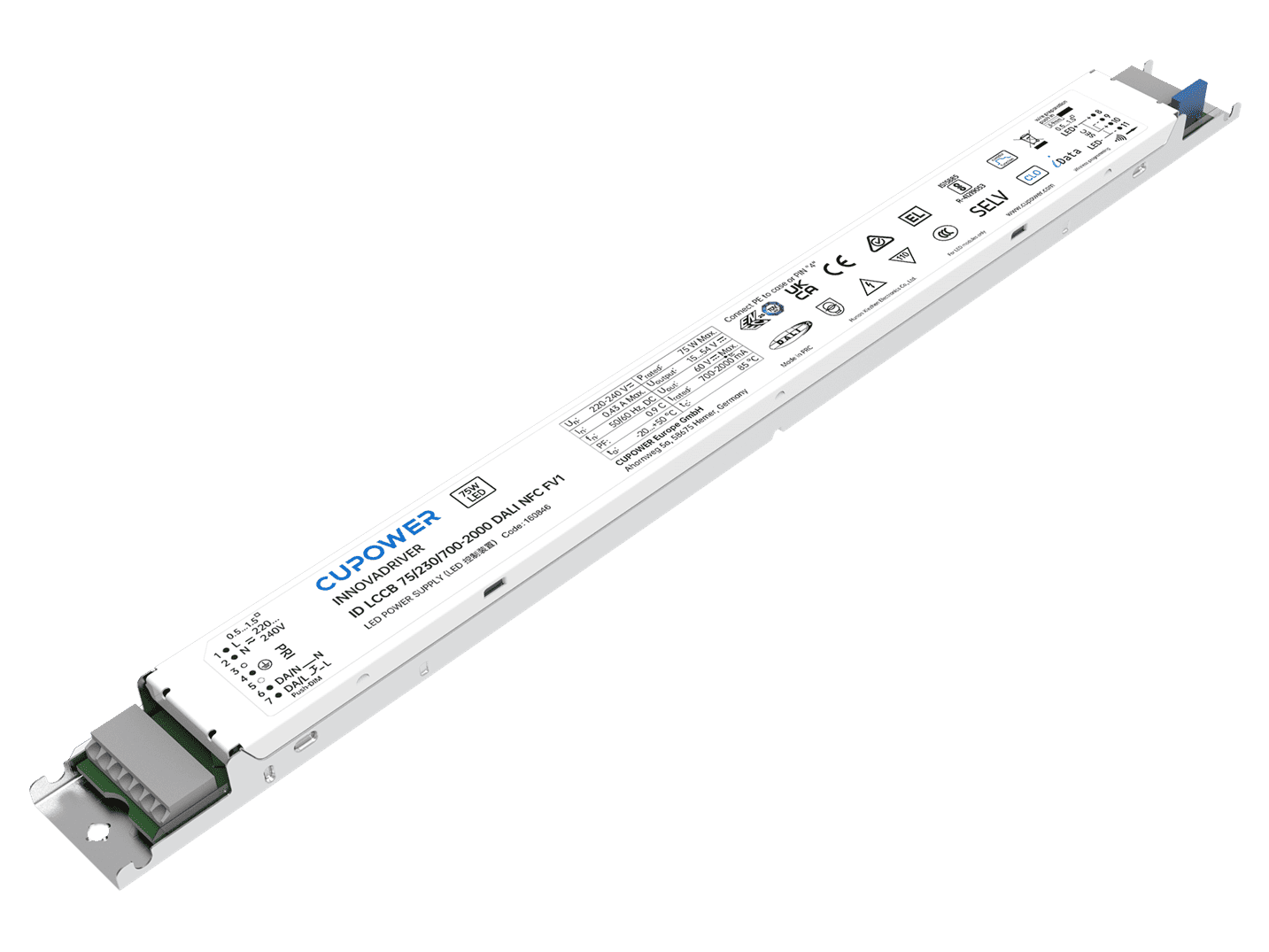

160846 ID LCCB 75/230/700-2000 DALI NFC FV1

< Back

L360 x W30 x H16 mm

WT: 0.2355 kg

Product description

Constant current drivers with wide operating windows
Supports DALI-2 and push DIM
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1-100% (amplitude dimming)
Standby power consumption < 0.3 W, meets ErP energy efficiency certification
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.43 A @ 230 Vac
THD:	≤ 15% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 8.5 A、Inrush current Twidth: 57.5 μs
MCB Quantity B10A:	21
MCB Quantity C10A:	21
MCB Quantity B16A:	34
MCB Quantity C16A:	34
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	60 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.3 W
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2, Push Dimming
Dimming range:	1％...100％
Adjustable output current:	NFC
Withstand voltage:	I/P-O/P:3.75 kVac,＜5mA 60 sec; I/P-DA:1.5 kVac,＜5mA 60 sec
