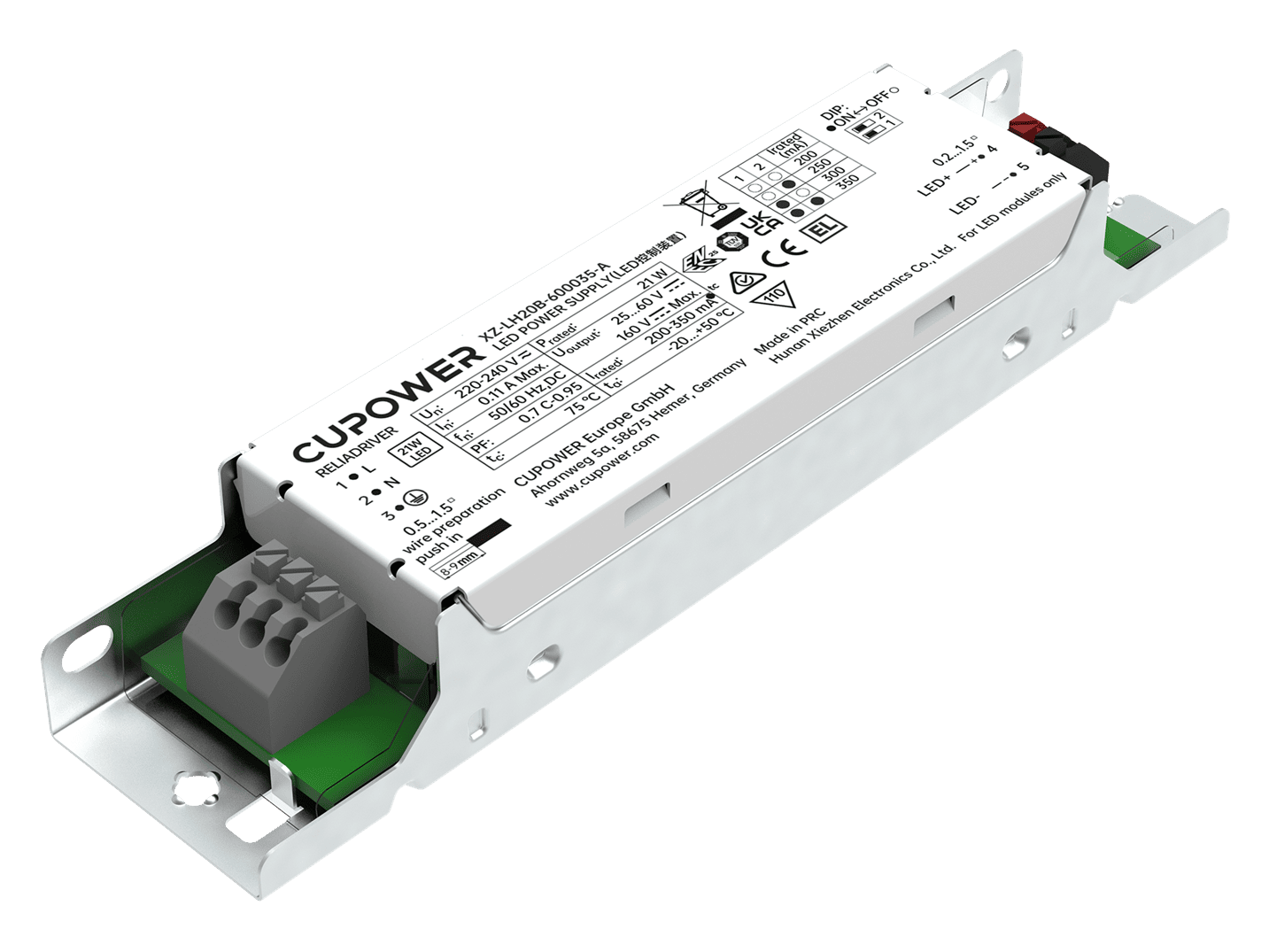

163076 XZ-LH20B-600XXX-T

< Back

L137 x W30 x H21 mm

WT: 0.0786 kg

Questions Order a Sample

Product description

High power factor
Flicker-free
DIP switch for multi-current setting
Support 3-step color temperature selection via sliding switch (optional)
Suitable for Class I luminaires

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176…280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.11A
THD:	20%
Inrush current :	lnrush current lpeak: 9.4 A ;lnrush current Twidth: 192 μs
MCB Quantity B10A:	42
MCB Quantity C10A:	70
MCB Quantity B16A:	67
MCB Quantity C16A:	112
Output current tolerance :	5%
Output voltage max:	60 V
Ripple:	5%
Standby power consumption:	N/A
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP
Withstand voltage:	I/p-GND: 1.5 KVac, < 5 mA 60 sec; O/p-GND: 1.5 KVac, < 5 mA 60 sec;

Operating temperature:	-20…+50°C
Storage temperature:	-40…+80°C
Working humidity:	10%…90%
Store humidity:	5%…90%
Driver lifetime:	at Tc ≤ 60°C: 100,000 hrs; at Tc ≤ 70°C: 50,000 hrs; at Tc ≤ 75°C: 35,000 hrs
Maximum Tc temperature:	75°C

Pcs./ carton:	60 pcs
Carton size:	317 x 147 x 160 mm
Gross weight:	4.93 kg

Data sheets
Approvals
3D Drawing
Declaration

163533_XZ_LH20B_600035_A
163540_XZ_LH20B_600035_B
Download all

ENEC_XZ_LH20B_600XXX_T
LVD_XZ_LH20B_600XXX_T
RCM_XZ_LH20B_600XXX_T
3C_XZ_LH20B_600XXX_T
Download all
