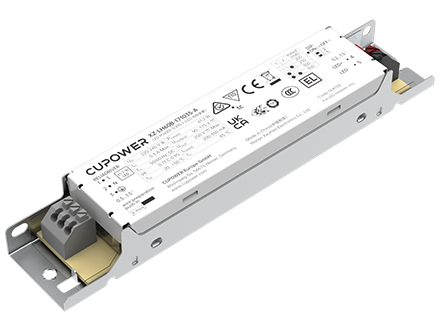

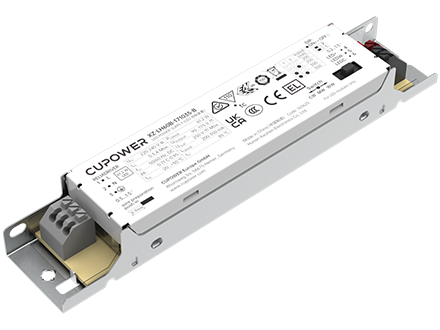

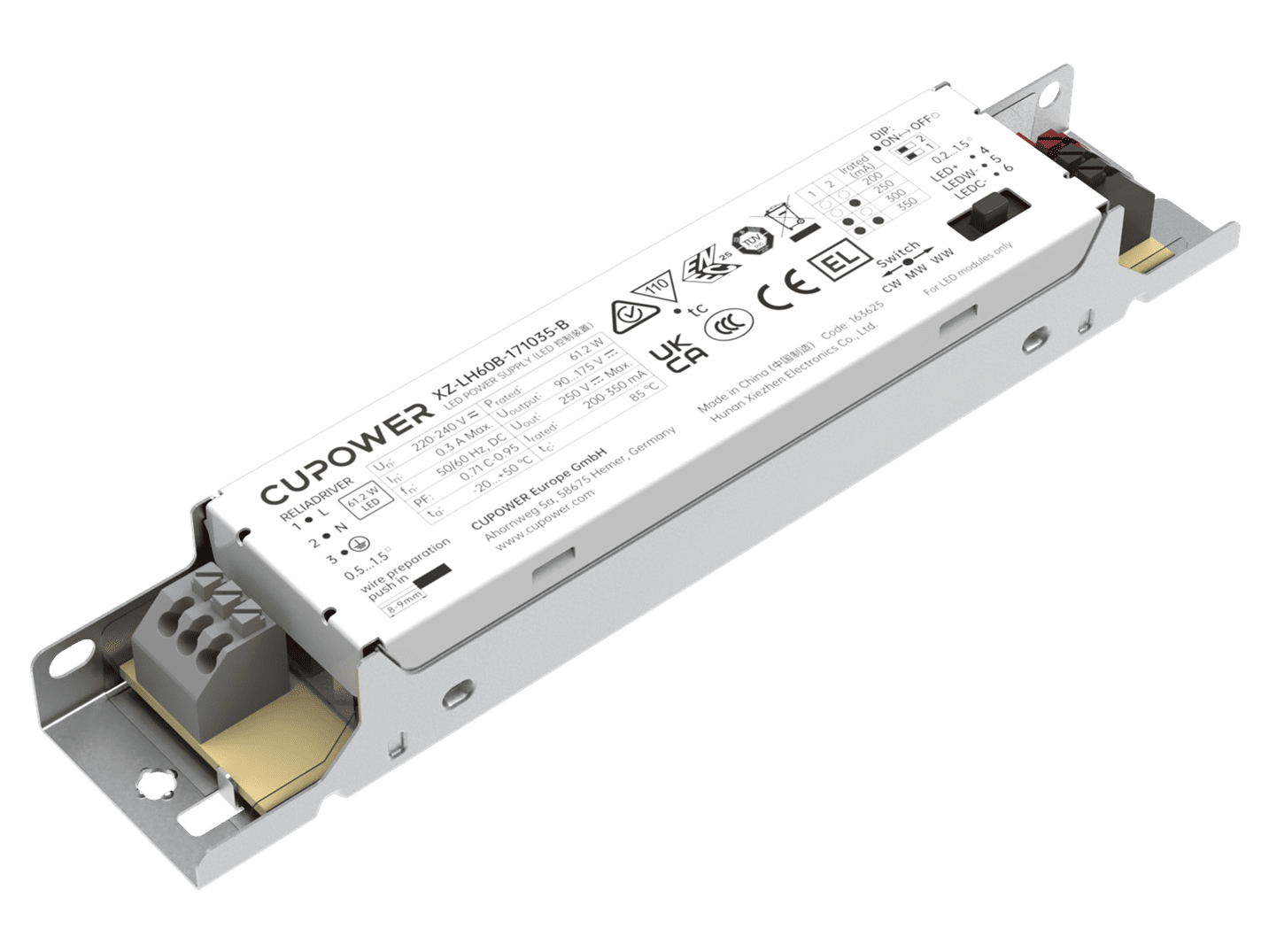

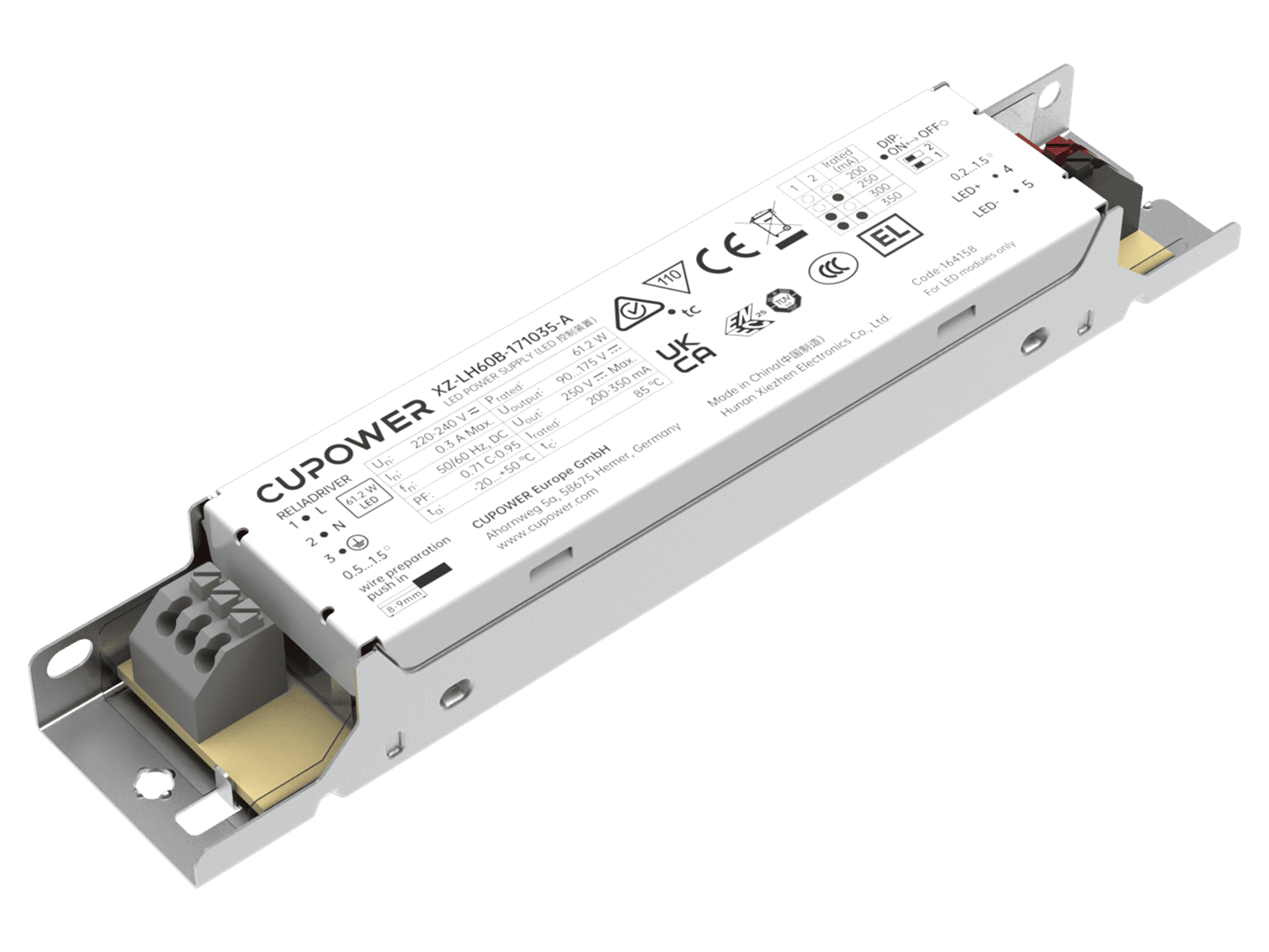

163106 XZ-LH60B-171XXX-T

< Back

L157 x W30 x H21 mm

WT: 0.1 kg

Questions Order a Sample

Product description

High power factor
Flicker-free
DIP switch for multi-current setting
Support 3-step color temperature selection via sliding switch (optional)
Suitable for Class I luminaires

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176…280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.30 A
THD:	< 10%
Inrush current [Aµs]:	33.1 A 168 μs
MCB Quantity B10A:	11
MCB Quantity C10A:	19
MCB Quantity B16A:	18
MCB Quantity C16A:	31
Output current tolerance:	± 5%
Output voltage max:	250 Vdc
Ripple:	5%
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	N/A
Withstand voltage:	l/p-GND: 1.5 kVac, < 5 mA 60 sec; O/p-GND: 1.5 kVac, < 5 mA 60 sec

Operating temperature:	-20…+50°C
Storage temperature:	-40…+80°C
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 65°C: 100,000 hrs; at Tc 75°C: 50,000 hrs; Tc 85°C: 25,000 @ 230 Vac
Maximum Tc temperature:	85°C

Pcs./ carton:	60 pcs
Carton size:	317 x 167 x 160 mm
Gross weight:	6.5 kg

Data sheets
Approvals
3D Drawing
Declaration

164158_XZ_LH60B_171035_A
163625_XZ_LH60B_171035_B
Download all

ENEC_XZ_LH60B_171XXX_T
LVD_XZ_LH60B_171XXX_T
RCM_XZ_LH60B_171XXX_T
3C_XZ_LH60B_171XXX_T
Download all
