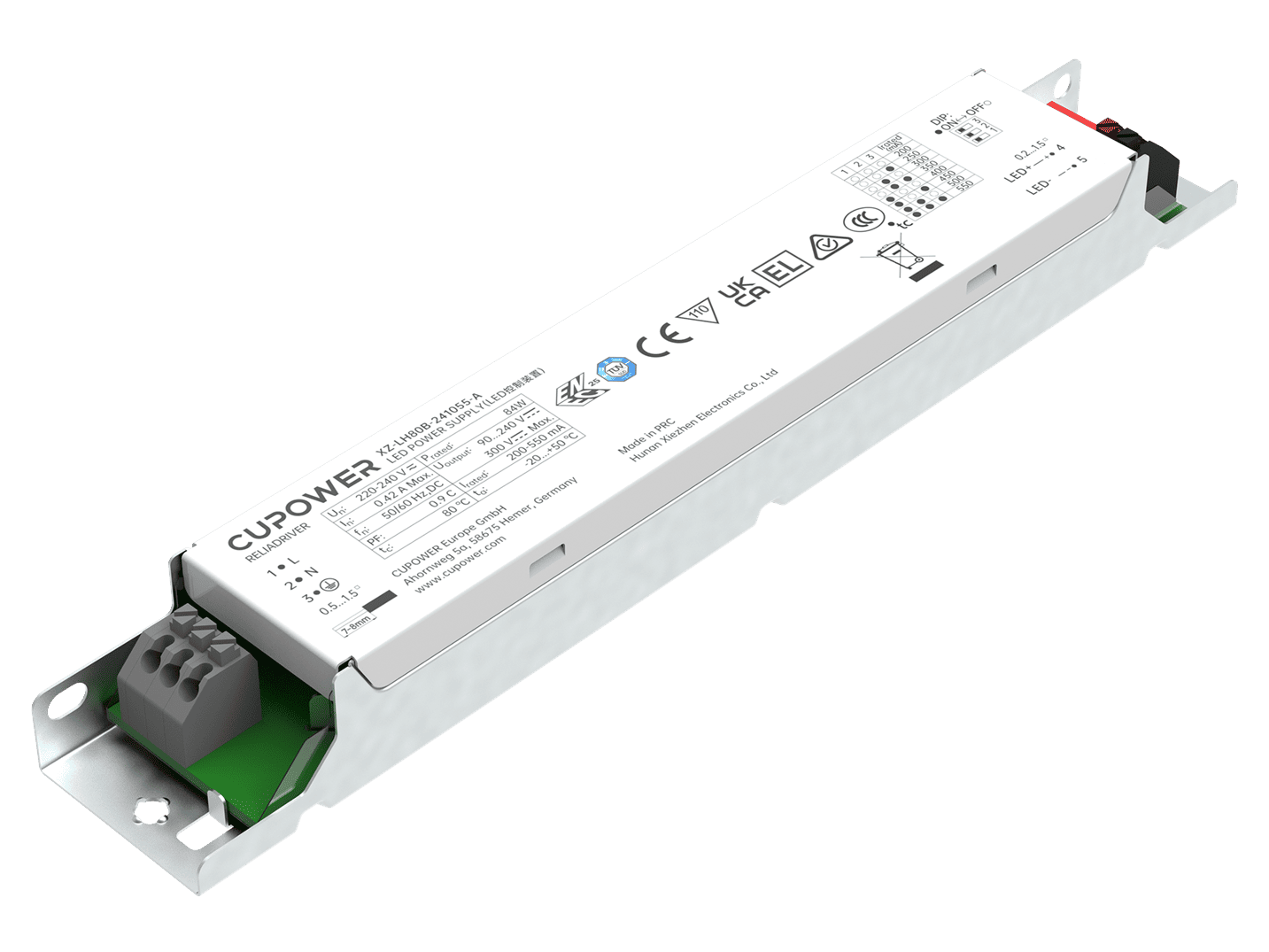

163113 XZ-LH80B-241XXX-T

< Back

L193 x W30 x H21 mm

WT: 0.14 kg

Questions Order a Sample
Product description
  • High power factor
  • Flicker-free
  • DIP switch for multi-current setting
  • Support 3-step color temperature selection via sliding switch (optional)
  • Suitable for Class I luminaires
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.42A @ 230 Vac
THD:< 15%
Inrush current [Aµs]:

 44.4 A/156.1 μs

MCB Quantity B10A:9
MCB Quantity C10A:15
MCB Quantity B16A:15
MCB Quantity C16A:25
Output current tolerance:

± 5%

Output voltage max:300 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

l/p-FG: 1.5 kVac, < 5 mA 60 sec
