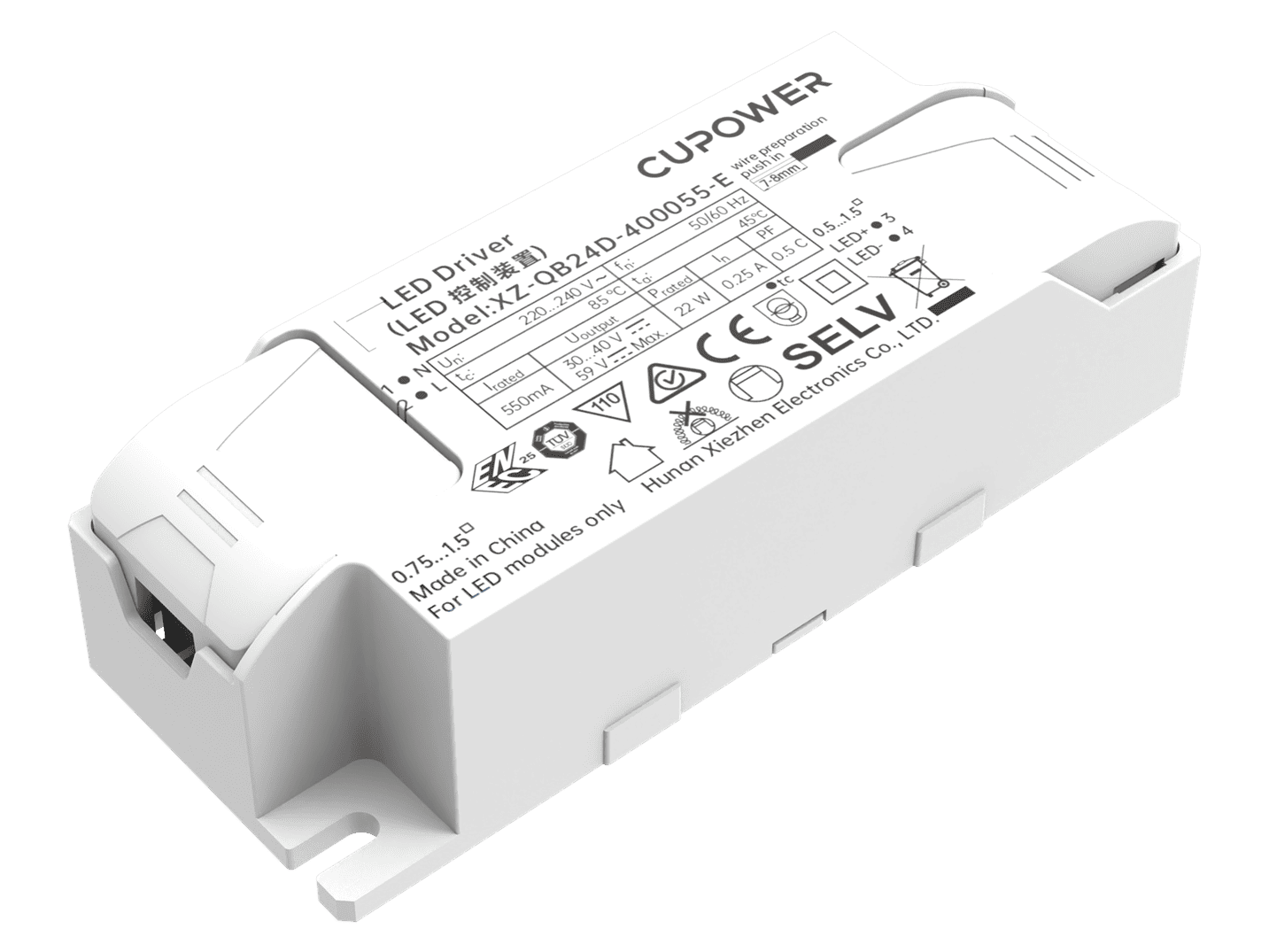

161911 XZ-QB24D-400055-E

< Back

L93 x W36 x H24 mm

WT: 0.052 kg

Questions Order a Sample

Product description

SELV power supply
High power factor
Flicker-free
Push terminal design, easy to install
Meets ErP energy efficiency certification
Suitable for Class II luminaires
For 1.5 mm2 wiring on primary and secondary side

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.25 A @ 230 Vac
THD:	N/A
Inrush current [Aµs]:	Inrush current lpeak: 14.1 A、Inrush current Twidth: 134 μs
MCB Quantity B10A:	35
MCB Quantity C10A:	58
MCB Quantity B16A:	56
MCB Quantity C16A:	93
Output current tolerance:	± 5%
Output voltage max.:	59 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec

Operating temperature:	-20…+45°C
Storage temperature:	-40…+80℃
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 85°C: 30,000 hrs; at Tc 75°C: 50,000 hrs @230Vac
Maximum Tc temperature:	85°C

Pcs./ carton:	80 pcs
Carton size:	385 x 190 x 130 mm
Gross weight:	4.56 kg

Data sheets
Approvals
3D Drawing
Declaration

ENEC_XZ_QB24D_400055_E
CB_XZ_QB24D_400055_E
CE-EMC_XZ_QB24D_400055_E
RCM_XZ_QB24D_400055_E
SAA_XZ_QB24D_400055_E
3C_XZ_QB24D_400055_E
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

NAPPK PWM5CH-CAS

NALNR54-1400D-NFC-CAS

NALNR54-1400D-010V-NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-QB24D-400055-E	550 mA	220...240 Vac	30...40 V	87%	± 5%	> 0.9
