Non-SELV NFC > ID series

  • 新75 100

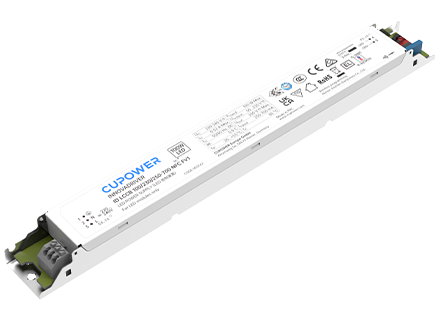

Product description
• Constant power output designs with wide operating window
• High power factor, suitable for Class I luminaires
• Flicker-free
• Supports NFC reader to precisely control current, CLO
Product family
Article No. Description Power Input
voltage
Output
voltage
Output
current
Efficiency
@full load
Dimensions
(mm)
Data sheet
(download)
160242 ID LCCB 100/230/250-700 NFC FV1 100W 220-240VAC
220-240VDC
50-220 V
250-700 mA
93% L278*W30*H21
160181 ID LCCB 75/230/120-400 NFC FV1 75W 220-240VAC
220-240VDC
50-220 V
120-400 mA
93% L278*W30*H21
160129 ID LCCB 36/230/120-400 NFC FV1 36W 220-240VAC
220-240VDC
50-137 V
120-400 mA
91% L193*W30*H21
Power range:6-100 W
Adjustable output current:NFC
Dimming interface:/
Dimming range:/
Flicker-free:PstLM<1, SVM<0.4
Flicker-freeInput votage shock:320 V AC, 1 h
Operating temperature range:Ta -20…+55 °C
Power factor:> 0.9
Surge protection:L-N: 1 kV, L/N-GND: 2 kV
Start up time:< 500 ms @ 230 V
Lifetime:at Tc ≤ 75℃: 50,000 hrs; at Tc ≤ 65℃: 100,000 hrs; @230Vac
Type of Protection:/
Warranty:5 year
  • Download all
  • Download all
  • Download all
  • Download all
Supports multiple protocols and is compatible with multiple lighting fixtures
DALI-2
The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.
NFC
NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.
idata
Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).
Bluetooth
Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.
WIFI
Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.
D4i
D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
